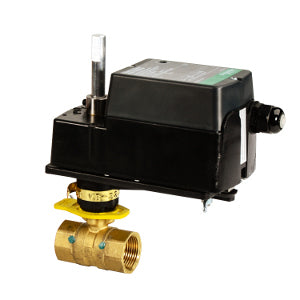

Schneider Electric VS-2253-821-9-23 Valve Actuator Assembly

Product Description

The Schneider Electric VS-2253-821-9-23 is a valve actuator assembly designed for efficient operation in various applications. This product is suitable for controlling flow in ball valves and dampers. It features a stainless steel trim and is ideal for use with glycol and water media.

• Body Size: 1 inch
• Configuration: 2-Way Ball Valve
• Close-Off Pressure: 100 PSI

Product Highlights

This actuator is designed for automatic reset operations and incorporates a proportional control signal ranging from 2 to 10 VDC. The robust NEMA 2 protection rating and a torque value of thirty lbf.in make it suitable for a wide range of environments.

Product Information

Standard Information

• Brand: Schneider Electric
• Model Number: VS-2253-821-9-23

Technical Specifications

• Actuator Type: Electric
• Flow Coefficient: 15.3 cv
• Power Input Voltage: 20 to 30 VDC, 24 VAC/VDC
• Torque: 30 in-lb
• Temperature Range: -30 to 60 °C ambient operation
• Electrical Insulation Class: Class II
• Current Consumption: 120 mA
• Material: Forged brass body and die cast aluminum housing
