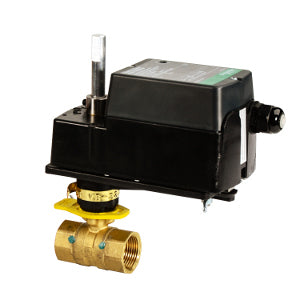

Schneider Electric VS-2253-821-9-22 Ball Valve Assembly 1 in 2-Way NPT

Product Description

Schneider Electric VS-2253-821-9-22 is a ball valve assembly designed for efficient control of fluids. This assembly features a one inch body size and a two-way configuration. It operates with an electric actuator and can handle close-off pressures up to 100 PSI. Ideal for controlling media such as glycol and water, this valve is suitable for HVAC applications.

• Body size: One inch
• Flow coefficient: Nine cubic feet per minute
• Actuator type: Electric rotary

Product Highlights

This product is engineered for ball valves and dampers. The actuator has a torque rating of thirty inch-pounds and operates within a wide voltage range. Its robust construction allows for reliable operation in various conditions.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• MPN: VS-2253-821-9-22
• Body Material: Forged brass
• Control Signal: Proportional (2 to 10 VDC)
• Power Input Voltage: 20 to 30 VDC, 24 VAC/VDC
• Torque: 30 in-lb
• Protection Rating: NEMA 2
• Operating Fluid Temperature: -7 to 121 °C
• Ambient Air Temperature for Operation: -30 to 60 °C
• Current Consumption: 120 mA
• Power Consumption: 3.4 W
• Relative Humidity: 15-95 % non-condensing
