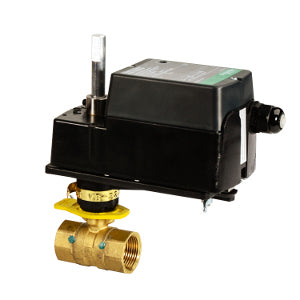

Schneider Electric VS-2253-821-9-12 Ball Valve Actuator Assembly

Product Description

Schneider Electric VS-2253-821-9-12 is a ball valve actuator assembly designed for efficient operation in fluid control systems. This product features a compact body size of three-fourths of an inch and a two-way configuration. It is constructed with a stainless steel trim, which enhances durability and resistance to corrosion. The electric actuator operates with a power input voltage of twenty-four VAC or twenty to thirty VDC, suitable for a variety of control applications.

• Flow coefficient of 0.63 cv for optimal flow control
• Close-off pressure rated at 130 PSI ensures reliable sealing
• Spring-return mechanism for reliable operation without power

Product Highlights

This assembly provides robust performance while maintaining a compact design. It is ideal for HVAC systems, plumbing applications, and industrial automation.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Schneider Electric

Technical Specifications

• Body Size: 3/4 in
• Configuration: 2-Way
• Type: Ball
• Connection: NPT
• Flow Coefficient: 0.63 cv
• Close-Off Pressure: 130 PSI
• Actuator Type: Electric
• Control Signal: Proportional
• Power Input Voltage: 24 VAC/20-30 VDC
• Torque: 30 in-lb
• Protection Rating: NEMA 2
• Ambient Air Temperature for Operation: -30 to 60 °C
• Relative Humidity: 15-95 % non-condensing
• Duty Cycle: Continuous
