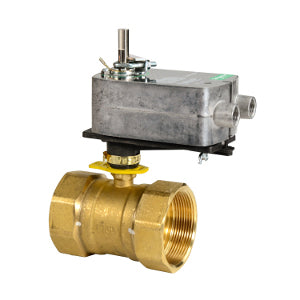

Schneider Electric VS-2253-536-9-82 Ball Valve Assembly 3 in NPT Replacement MPN

Product Description

Schneider Electric VS-2253-536-9-82 is a ball valve assembly designed for efficient fluid control. This assembly features a three-inch size, suitable for various industrial applications. It includes an electric actuator with a proportional control signal. The actuator can operate within a voltage range of twenty-four VAC and twenty-two to thirty VDC.

• Designed for a variety of fluid control applications.
• Electric actuator provides proportional control.
• Stainless steel trim ensures durability.

Product Highlights

This valve assembly operates smoothly with a torque rating of thirty-five inch-pounds. It has a close-off pressure capability of seventy PSI. The actuator features a spring return for reliable operation.

Product Information

Standard Information

• Brand: Schneider Electric
• Product Type: Valve-Actuator Assembly

Technical Specifications

• Body Size: 3 inches
• Configuration: 2-Way
• Connection Type: NPT
• Material: Stainless Steel
• Flow Coefficient: 63 cv
• Close-Off Pressure: 70 PSI
• Actuator Type: Electric
• Control Signal: Proportional (2 to 10 VDC, 4 to 20 mAdc)
• Loss of Power Type: Spring Return
• Power Input Voltage: 24 VAC or 22 to 30 VDC
• Torque: 35 inch-lb
• Operating Fluid Temperature: -7 to 121 °C
• Ambient Air Temperature for Operation: -30 to 60 °C
• Protection Rating: NEMA 2
• IP Rating: IP11
