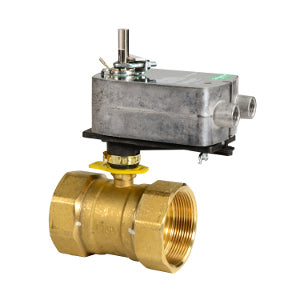

Schneider Electric VS-2253-536-9-75 Valve Actuator Assembly 2-1/2 in NPT

Product Description

The Schneider Electric VS-2253-536-9-75 is a valve actuator assembly designed for operational efficiency in control applications. This actuator features a body size of two and one-half inches and operates as a two-way ball valve with NPT connection. The valve body is made of stainless steel, ensuring durability and resistance to corrosion.

• Power input voltage: Twenty-two to thirty VDC or twenty-four VAC/VDC
• Control signal: Proportional with a range of two to ten VDC or four to twenty mA DC
• Torque: Thirty-five in-lb with a maximum close-off pressure of seventy PSI

Product Highlights

This product is suitable for HVAC applications, particularly for dampers and globe valves. Its robust design supports a wide operational fluid temperature range, while the mechanical movement is rotary, ensuring reliable performance under various conditions.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Country of Origin: US

Technical Specifications

• Body Size: 2-1/2 inches
• Configuration: 2-Way
• Flow Coefficient: 162 cv
• Actuator Type: Electric
• Protection Rating: NEMA 2
• Control Media: Glycol 25-50% and Water
• Ambient Air Temperature for Operation: -30 to 60 °C
• Mechanical Movement: Rotary
