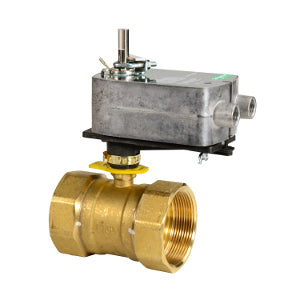

Schneider Electric VS-2253-536-9-72 Ball Valve Assembly 2-1/2 in NPT Replacement VS-2253-536-9-72

Product Description

Schneider Electric VS-2253-536-9-72 is a valve assembly designed for fluid control. The product features a two-and-a-half inch body size and operates using a two-way ball design, making it suitable for various applications.

• Body Size: 2.5 inches
• Flow Coefficient: 55 cv
• Power Input Voltage: 24 VAC or 22 to 30 VDC

Product Highlights

This assembly operates with an electric actuator providing proportional control. It includes a spring return mechanism ensuring it returns to a normally open position when power is lost, enhancing operational reliability.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Configuration: 2-Way
• Connection Type: NPT
• Material Trim: Stainless Steel
• Close-Off Pressure: 70 PSI
• Actuator Type: Electric
• Control Signal Range: 2 to 10 VDC, 4 to 20 mAdc
• Loss of Power Type: Spring Return
• Leads and Connections: 3 ft Plenum
• Torque: 35 in-lb
• Mechanical Movement: Rotary
• Protection Rating: NEMA 2
• Operating Fluid Temperature: -7 to 121 °C
• Ambient Air Temperature For Operation: -30 to 60 °C
• Relative Humidity: 5-95 % non-condensing
• Power Consumption: 5.6 VA AC
