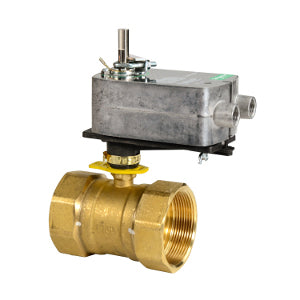

Schneider Electric VS-2253-536-9-71 Valve Actuator Assembly 2-1/2 in

Product Description

The Schneider Electric VS-2253-536-9-71 is a valve actuator assembly designed for precise control in various applications. With a body size of two and a half inches and a two-way ball configuration, this product uses stainless steel as its trim material. It allows for a flow coefficient of 45 cv and operates effectively at a close-off pressure of seventy PSI. The actuator type is electric, accepting a proportional control signal ranging from four to twenty milliamperes DC. It is suitable for applications where a spring return is essential and operates with a normally open position.

• Body Size: 2-1/2 inches
• Configuration: 2-Way Ball
• Actuator Type: Electric

Product Highlights

This valve actuator assembly is not suitable for steam applications. The actuator is designed for rotary movement and offers significant torque with a rating of thirty-five inch-pounds.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Country of Origin: US

Technical Specifications

• Control Signal: Proportional (2 to 10 VDC, 4 to 20 mAdc)
• Close-Off Pressure: 70 PSI
• Power Input Voltage: 24 VAC or 22 to 30 VDC
• Torque: 35 in-lb
• Protection Rating: NEMA 2
• Operating Fluid Temperature: -7 to 121 °C
• Electrical Insulation Class: Class II
• Relative Humidity: 5-95 % non-condensing
