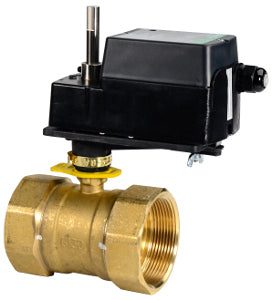

Schneider Electric VS-2253-506-9-76 ball valve actuator assembly

Product Description

The Schneider Electric VS-2253-506-9-76 is a ball valve actuator assembly designed for precise control in fluid handling systems. This actuator offers a reliable electric operation with a proportional control signal. It suits applications where automated control of valves is essential in HVAC and plumbing systems.

• Body Size: Two and one-half inches
• Configuration: Two-Way
• Material Trim: Stainless Steel

Product Highlights

This assembly is non-return spring type and features a rotary movement, making it suitable for various hydraulic applications.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Actuator Type: Electric

Technical Specifications

• Flow Coefficient: 202 cv
• Close-Off Pressure: 70 PSI
• Power Input Voltage: 24 VAC
• Torque: 70 in-lb
• Protection Rating: NEMA 2
• Control Signal Range: 0 to 10 VDC
• Operating Temperature: -7 to 121 °C
• Ambient Air Temperature for Operation: -31.6 to 54.4 °C
• Relative Humidity: 5-95 % non-condensing
