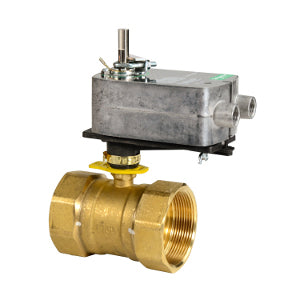

Schneider Electric VS-2253-506-9-51 Valve Assembly 1-1/2 in 2-Way

Product Description

Schneider Electric VS-2253-506-9-51 is a valve actuator assembly designed for accurate fluid control. This model features a body size of one and one-half inches and includes a two-way ball valve with NPT connections. It has a stainless steel trim and a flow coefficient of 22.8 cv, making it suitable for various applications except for steam. The actuator operates on 24 VAC and utilizes a proportional control signal for efficient performance.

• Body Size: 1-1/2 in
• Configuration: 2-Way
• Actuator Type: Electric

Product Highlights

This valve is ideal for HVAC systems, providing dependable operation under specified pressure and temperature conditions. The total close-off pressure is rated at seventy PSI.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Country of Origin: Not specified

Technical Specifications

• Control Signal Range: 0 to 10 VDC
• Torque: 70 in-lb
• Protection Rating: NEMA 2
• Operating Fluid Temperature: -7 to 121 °C
• Ambient Air Temperature For Operation: -31.6 to 54.4 °C
• Power Input Voltage: 24 VAC
• Relative Humidity: 5 to 95 % non-condensing
