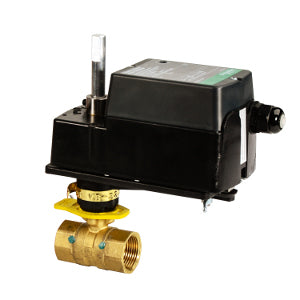

Schneider Electric VS-2253-505-9-46 Ball Valve Assembly 1-1/4 in

Product Description

Schneider Electric VS-2253-505-9-46 is a ball valve assembly designed for use in various applications requiring precise flow control. This assembly features a body size of one and one-quarter inches and utilizes a two-way configuration. The valve connects through NPT sizing and is constructed with stainless steel to ensure durability.

• Flow coefficient of 102.3 cv
• Electric actuator with proportional control signal
• Rated for a close-off pressure of seventy PSI

Product Highlights

This valve assembly is suitable for diverse fluid control applications but is not recommended for steam. Its design incorporates a fail-in-place feature during power loss, enhancing safety.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: VS-2253-505-9-46

Technical Specifications

• Body Size: 1-1/4 inches
• Valve Type: Ball
• Connection: NPT
• Material Trim: Stainless Steel
• Flow Coefficient: 102.3 cv
• Close-Off Pressure: 70 PSI
• Actuator Type: Electric
• Control Signal: Proportional (0 to 10 VDC)
• Torque: 35 in-lb
• Mechanical Movement: Rotary
• Protection Rating: NEMA 2
• Electrical Insulation Class: Class II
• Power Input Voltage: 24 VAC
• Operating Fluid Temperature: -7 to 121 °C
• Ambient Air Temperature For Operation: -31.6 to 54.4 °C
• Relative Humidity: 5-95 % non-condensing
• Duty Cycle: 1
