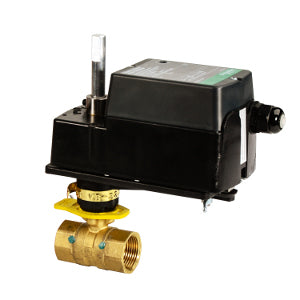

Schneider Electric VS-2253-505-9-41 Ball Valve Actuator Assembly

Product Description

The Schneider Electric VS-2253-505-9-41 is a ball valve actuator assembly designed for use in various HVAC applications. This model features a one and one-fourth inch body size and a two-way configuration, making it suitable for precise control over fluid flow. It operates on 24 VAC power and includes a stainless steel trim that withstands various environmental conditions.

• Body Size: 1-1/4 inches
• Configuration: 2-way
• Material: Stainless Steel

Product Highlights

This actuator is not designed for use with steam. It supports proportional control signals and operates within a torque range of thirty-five inch-pounds.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Country of Origin: US

Technical Specifications

• Flow Coefficient: 4.4 cv
• Close-Off Pressure: 70 PSI
• Actuator Type: Electric
• Control Signal: Proportional (0 to 10 VDC)
• Power Input Voltage: 24 VAC
• Torque: 35 in-lb
• Protection Rating: NEMA 2
• Operating Fluid Temperature: -7 to 121 °C
• Ambient Air Temperature For Operation: -31.6 to 54.4 °C
