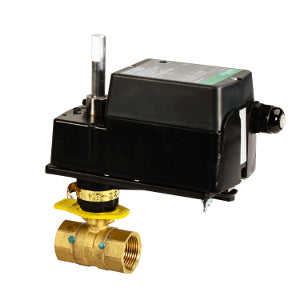

Schneider Electric VS-2253-505-9-23 Ball Valve Actuator Assembly

Product Description

The Schneider Electric VS-2253-505-9-23 is a two-way ball valve actuator assembly designed for various fluid control applications. This unit features a compact design suitable for installation in tight spaces. It operates with an electric actuator that provides proportional control.

• Body Size: 1 inch
• Flow Coefficient: 15.3 cv
• Close-Off Pressure: 100 PSI

Product Highlights

This valve actuator is suitable for HVAC systems. It allows for precise control of fluid flow in heating and cooling applications. The actuator is designed for use with non-steam applications.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Schneider Electric

Technical Specifications

• MPN: VS-2253-505-9-23
• Operating Fluid Temperature: -7 to 121 °C
• Power Input Voltage: 24 VAC
• Torque: 35 in-lb
• NEMA Protection: NEMA 2
• Actuator Type: Rotary
• Loss of Power Type: Non-Spring Return
• Control Signal Range: 0 to 10 VDC
