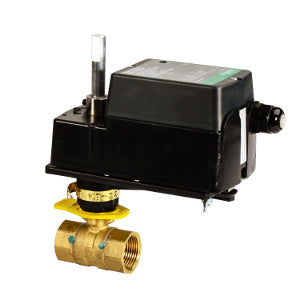

Schneider Electric VS-2253-505-9-13 Ball Valve Assembly 3/4 in

Product Description

The Schneider Electric VS-2253-505-9-13 is a valve actuator assembly designed for various applications in HVAC systems. This electric actuator operates a 3/4 inch ball valve and features a two-way configuration. It is suitable for use with compatible systems, providing reliable control without the need for steam.

• Electric actuator rated at 24 VAC
• Fail-in-place design during power loss
• Robust stainless steel construction for durability

Product Highlights

This actuator delivers dependable functionality in HVAC applications. It offers a simple integration process and is particularly efficient in managing fluid flow in ducts and pipes.

Product Information

Standard Information

• Brand: Schneider Electric
• Product Type: Valve-actuator assembly

Technical Specifications

• Body Size: 3/4 inch
• Configuration: 2-Way
• Type: Ball
• Connection: NPT
• Material Trim: Stainless Steel
• Flow Coefficient: 1.2 cv
• Close-Off Pressure: 130 PSI
• Actuator Type: Electric
• Control Signal: Proportional (0 to 10 VDC)
• Power Input Voltage: 24 VAC
• Torque: 35 in-lb
• Operating Fluid Temperature: -7 to 121 °C
• Ambient Temperature Range: -31.6 to 54.4 °C
• Relative Humidity: 5 to 95 % non-condensing
• NEMA Rating: NEMA 2
• IP Degree of Protection: IP11
