Schneider Electric VP229E-32S-014-U301 SmartX Pressure Independent Valve Assembly 14 GPM

Product Description

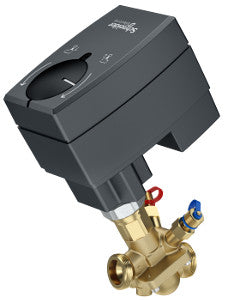

Schneider Electric VP229E-32S-014-U301 is a pressure independent valve assembly with a body size of one and one-quarter inches. This two-way valve supports a flow rate of fourteen gallons per minute. It is designed for efficient control of water flow in various applications.

• Pressure independent operation
• Compact design with external thread connection
• LED status indicator for easy monitoring

Product Highlights

This valve assembly offers detailed control and efficiency in fluid systems. It is not suitable for steam applications.

Product Information

Standard Information

• Body Material: CW602N brass
• Country of Origin: Slovenia

Technical Specifications

• Flow Rate: 14 GPM
• Operating Fluid Temperature: -10 to 120 °C
• Close-Off Pressure: 232 PSI
• Power Input Voltage: 24 VAC
• Actuator Type: Electric
• Control Signal: Proportional, Floating
• IP Rating: IP54
• Relative Humidity: 0-95% RH, non-condensing
