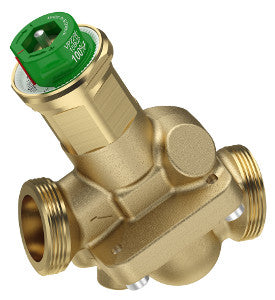

Schneider Electric VP229E-32BQSNT SpaceLogic PIBCV 2-Way (1-1/4) G1-1/2 Ext. Thread

Product Description

The Schneider Electric VP229E-32BQSNT is a two-way pressure independent valve designed for various HVAC applications. This valve features a body size of thirty-two millimeters with a G external thread connection. It accommodates a flow rate range of zero point sixty-four to three point two cubic meters per hour, suitable for fluid management in air handling units, fan coil units, and terminal units.

• Pressure independent design
• Wide flow rate range
• Compatible with glycol and water

Product Highlights

This valve is part of Schneider Electric's SmartX PIBCV product line, providing reliable performance and control in heating and cooling systems.

Product Information

Standard Information

• Brand: Schneider Electric
• Product Line: SmartX PIBCV

Technical Specifications

• MPN: VP229E-32BQSNT
• Body Material: CW602N brass
• Control Media: Glycol 15-50% and Water
• Seat Leakage: Class IV (0.01%)
• Flow Rate Range: 0.64 to 3.2 m³/h
• Operating Fluid Temperature: -10 to 120 °C
• Valve Connection Size: G 1-1/2A
• Applications: Air handling units, fan coil units, radiation panels
