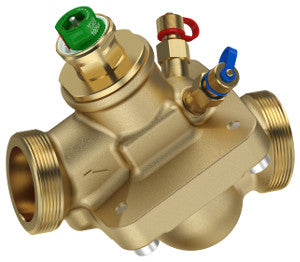

Schneider Electric VP229E-32BQS SpaceLogic PIBCV Valve 2-Way PN16 DN32 G1-1/2 External Thread

Product Description

Schneider Electric's VP229E-32BQS is a SpaceLogic PIBCV (pressure independent balancing control valve). This two-way valve is designed for efficient control of fluid flow with a nominal diameter of thirty-two millimeters (one and one-quarter inches) and a standard flow rate ranging from zero point sixty-four to three point two cubic meters per hour (zero point eighteen to zero point eighty-nine liters per second).

• Body Size: 32 mm (1-1/4 in)
• Flow Rate: 0.64 to 3.2 m³/h
• Control Media: Glycol and water with up to 50% glycol

Product Highlights

This valve is ideal for use in air handling units, fan coil units, radiation panels, and terminal units. It operates effectively in various HVAC applications.

Product Information

Standard Information

• Brand: Schneider Electric
• Product Type: Valve

Technical Specifications

• MPN: VP229E-32BQS
• Body Material: CW602N brass
• Temperature Range: -10 to 120 °C
• Connection Size: G 1-1/2 A
• Seat Leakage: Class IV (0.01 %)
• Installation Alert: End connection required; not for use with steam.
