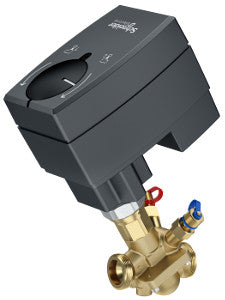

Schneider Electric VP229E-25S-L75-U201 SmartX Pressure Independent Valve Assembly 1 in 2-Way 7.5 GPM

Product Description

Schneider Electric VP229E-25S-L75-U201 is a pressure independent valve assembly. It features a body size of one inch and is designed for two-way operation with a flow rate of seven point five gallons per minute. This valve assembly utilizes an electric actuator for precise control.

• Pressure independent operation
• Integrated LED status indicator
• Compatible with SmartX PIBCV range

Product Highlights

This valve assembly is ideal for pressure independent control in HVAC systems, ensuring efficient operation and reduced energy consumption.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: VP229E-25S-L75-U201

Technical Specifications

• Valve Configuration: 2-Way
• Close-Off Pressure: 232 PSI
• Power Input Voltage: 24 VAC
• Flow Rate: 7.5 GPM
• Actuator Type: Electric
• Control Signal Range: 0 to 10 VDC, 4 to 20 mA
• Protection Rating: IP54
• Body Material: CW602N brass
• Operating Fluid Temperature: -10 to 120 °C
• Mechanical Movement: Linear
