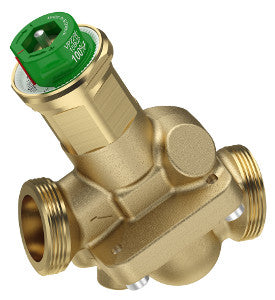

Schneider Electric VP229E-25BQSNT SpaceLogic PIBCV 2-Way Valve

Product Description

Schneider Electric VP229E-25BQSNT is a pressure independent valve that provides effective flow control for various applications. It features a two-way design with a nominal diameter of twenty-five millimeters and is suitable for use with glycol and water. The valve has a standard flow rate between zero point thirty-four and one point seven cubic meters per hour. This valve does not come with PT plugs and is not intended for steam applications.

• Body Size: twenty-five millimeters
• Type: Two-Way, Pressure Independent
• Flow Rate Range: Zero point thirty-four to one point seven cubic meters per hour

Product Highlights

This valve is designed for air handling units, fan coil units, radiation panels, and terminal units. It effectively balances and controls water flow in heating and cooling systems.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Schneider Electric

Technical Specifications

• Product Line: SmartX PIBCV
• Body Material: CW602N brass
• Control Media: Glycol fifteen to fifty percent, Water
• Operating Fluid Temperature: Negative ten to one hundred twenty degrees Celsius
• Flow Rate: Zero point thirty-four to one point seven cubic meters per hour
• Seat Leakage: Port A, Class IV (zero point zero one percent)
• Connection Size: G one and one-quarter A
