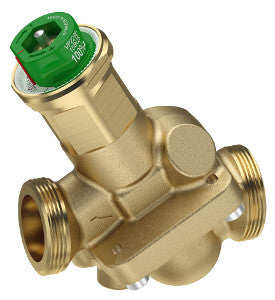

Schneider Electric VP229E-25BQHNT PIBCV Valve 2-Way PN16 DN25 G External Thread

Product Description

The Schneider Electric VP229E-25BQHNT is a two-way pressure independent balancing control valve. This valve is designed for use in various HVAC applications, ensuring optimal flow control without the need for pressure adjustments. It features a body size of twenty-five millimeters with a G external thread connection.

• Body material is CW602N brass
• Flow rate range from zero point fifty-four to two point seventy-three cubic meters per hour
• Suitable for glycol and water media

Product Highlights

This valve is part of the SmartX PIBCV series from Schneider Electric, intended for use in air handling units, fan coil units, and terminal units. It provides consistent flow control while maintaining energy efficiency.

Product Information

Standard Information

• Configuration: 2-Way
• Control Media: Glycol fifteen to fifty percent and Water

Technical Specifications

• Body Size: 25 mm (1 in)
• Flow Rate Range: 0.55 to 2.73 m³/h (2.42 to 12.02 gpm)
• Operating Fluid Temperature: -10 to 120 °C
• Seat Leakage: Class IV (0.01 %)
• Device Application: air handling unit, fan coil unit, radiation panel, terminal unit
