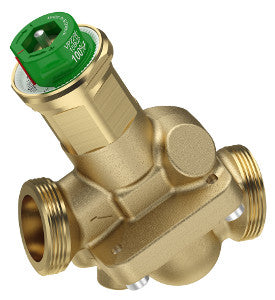

Schneider Electric VP229E-20BQHNT SpaceLogic PIBCV 2-Way G1 External Thread

Product Description

Schneider Electric VP229E-20BQHNT is a pressure independent balancing control valve. This two-way valve is designed for a flow rate range from 0.34 to 1.7 cubic meters per hour. It has a body size of twenty millimeters and features a G external thread connection. The valve is suitable for use with water and glycol mixtures of fifteen to fifty percent concentration.

• Pressure independent technology
• Flow rate range: 0.34 to 1.7 m³/h
• G external thread connection

Product Highlights

Ideal for fan coil units, radiation panels, and terminal units, the VP229E-20BQHNT offers reliable performance without PT ports, making it essential for precise control in HVAC applications.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Schneider Electric
• Country of Origin: Slovenia

Technical Specifications

• Body Size: 20 mm (3/4 in)
• Flow Rate Range: 0.34 to 1.7 m³/h (1.50 to 7.48 gpm)
• Operating Fluid Temperature: -10 to 120 °C
• Body Material: CW602N brass
• Seat Leakage: Class IV (0.01 %)
• Valve Connection Size: G 1A
