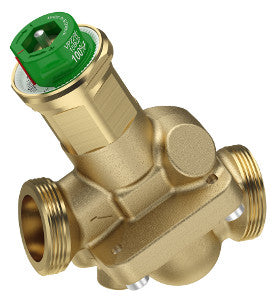

Schneider Electric VP229E-15BQHNT SpaceLogic PIBCV Valve 2-Way (15 mm) No Replacement MPN

Product Description

The Schneider Electric VP229E-15BQHNT is a 2-way pressure independent valve designed for efficient fluid control. This valve features a body size of fifteen millimeters and connects via G external thread. It supports flow rates from zero point twenty-three to one point fourteen cubic meters per hour, making it suitable for various applications including fan coil units and terminal units.

• Body Material: CW602N brass
• Flow Rate Range: 0.23 to 1.14 m³/h
• Control Media: Glycol 15 to 50% and water

Product Highlights

This valve is designed to maintain consistent flow regardless of pressure changes, allowing for precise control in heating and cooling systems.

Product Information

Standard Information

• Brand: Schneider Electric
• Product Type: Valve

Technical Specifications

• Operating Fluid Temperature: -10 to 120 °C
• Seat Leakage: Class IV (0.01 %)
• Valve Connection Size: G 3/4A
• Product Line: SmartX PIBCV
• Product Series: VP229E
