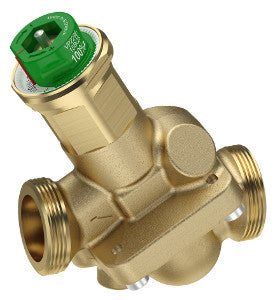

Schneider Electric VP228E-20BQSNT SpaceLogic PIBCV Valve G1 Ext. Thread

Product Description

Schneider Electric VP228E-20BQSNT is a spaceLogic PIBCV valve designed for pressure-independent applications. This valve allows for precise control in HVAC systems. The body size is twenty millimeters.

• Configuration: two-way.
• Flow rate range: zero point eighteen to zero point nine cubic meters per hour.
• No PT plugs included.

Product Highlights

This valve is suitable for fan coil units and radiation panels. It is compatible with glycol and water control media.

Product Information

Standard Information

• Brand: Schneider Electric
• Product Line: SmartX PIBCV

Technical Specifications

• Body Size: 20 mm (3/4 in)
• Type: Pressure Independent
• Connection: G external thread
• Operating Fluid Temperature: -10 to 120 °C
• Seat Leakage: Port A: Class IV (0.01 %)
• Body Material: CW602N brass
• Product Series: VP228E
• Device Application: fan coil unit, radiation panel, terminal unit
