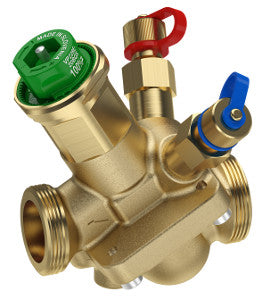

Schneider Electric VP228E-20BQS SpaceLogic PIBCV 2-Way G1 Ext. Thread Valve

Product Description

The Schneider Electric VP228E-20BQS is a SpaceLogic PIBCV valve designed for pressure-independent balancing and control. This two-way valve is suitable for a variety of applications including fan coil units, radiation panels, and terminal units. It features a body size of 20 millimeters and has an external G thread connection. The valve is capable of handling flow rates from zero point eighteen to zero point nine cubic meters per hour.

• Two-way configuration
• Pressure independent operation
• Compatible with glycol and water control media

Product Highlights

This valve is ideal for use where accuracy in flow control is required to maintain system efficiency.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: VP228E-20BQS

Technical Specifications

• Body Material: CW602N brass
• Operating Fluid Temperature: -10 to 120 °C
• Seat Leakage: Class IV (0.01 %)
• Flow Rate Range: 0.18 to 0.9 m³/h
• Connection Size: G 1A
• Control Media: Glycol (15 to 50%) and Water
• Product Line: SmartX PIBCV
• Product Series: VP228E
