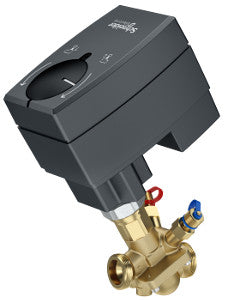

Schneider Electric VP228E-15S-L20-U301 SmartX Pressure Independent Valve Assembly 2 Way 1/2 In

Product Description

Schneider Electric VP228E-15S-L20-U301 is a pressure independent valve assembly designed for efficient flow regulation. This assembly is suitable for use in various applications where precise control of fluid flow is needed.

• Body Size: 1/2 inch
• Flow Rate: 2.0 gpm
• Configuration: 2-way

Product Highlights

This valve assembly provides reliable performance in pressure independent control systems. It features an electric actuator for enhanced control and ease of use.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: VP228E-15S-L20-U301

Technical Specifications

• Connection: G external thread
• Close-Off Pressure: 232 PSI
• Actuator Type: Electric, spring return
• Control Signal: Proportional, Floating
• Power Input Voltage: 24 VAC
• Protection Rating: IP54
• Body Material: CW602N brass
• Operating Fluid Temperature: -10 to 120 °C
• Seating Material: Brass, Class IV Leakage
• Relative Humidity: 0 to 95 % RH, non-condensing
