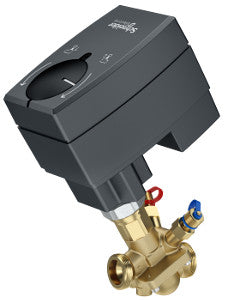

Schneider Electric VP228E-15S-L15-U201 SmartX Pressure Independent Valve Assembly 1/2 in 2-way 1.5 GPM

Product Description

The Schneider Electric VP228E-15S-L15-U201 is a SmartX pressure independent valve assembly designed for efficient flow control. With a body size of one-half inch, this two-way valve operates at a flow rate of one point five gallons per minute. It features a brass body material, ensuring durability and reliability in various operating conditions. This valve is specifically for use with pressure independent control systems.

• Body Size: One-half inch
• Flow Rate: One point five gallons per minute
• Power Input Voltage: Twenty-four volts AC

Product Highlights

The valve includes an electric actuator with a spring return function and is designed for automatic reset control. It is not suitable for use with steam.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Country of Origin: Slovenia

Technical Specifications

• Configuration: 2-Way
• Close-Off Pressure: 232 PSI
• Protection Rating: IP54
• Operating Fluid Temperature: Minus ten to one hundred twenty degrees Celsius
• Ambient Air Temperature for Operation: Zero to fifty-five degrees Celsius
• Flow Pattern: Not specified
• Control Signal Range: Zero to ten VDC, four to twenty mA DC
• Mechanical Movement: Linear
