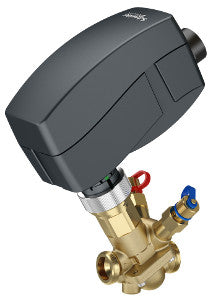

Schneider Electric VP228E-15S-L15-S101 SmartX Pressure Independent Valve Assembly 1/2 in 2-way 1.5 GPM

Product Description

Schneider Electric VP228E-15S-L15-S101 is a pressure independent valve assembly designed for various applications in HVAC systems. This valve features a half-inch size and a two-way configuration suitable for effective flow regulation. It is capable of achieving a flow rate of one point five gallons per minute.

• Body Size: 1/2 inch
• Control Signal: Proportional
• Power Input: 24 VAC

Product Highlights

The valve assembly ensures precise control of water flow and is designed for easy installation with tool-less connections. It includes features such as an LED status indicator to monitor performance.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Country of Origin: Slovenia

Technical Specifications

• Actuator Type: Electric
• Close-Off Pressure: 232 PSI
• Connection Type: G external thread
• Protection Rating: IP42
• Operating Fluid Temperature: -10 to 120 °C
• Ambient Air Temperature for Operation: 0 to 55 °C
• Relative Humidity: 0 to 95% RH, non-condensing
