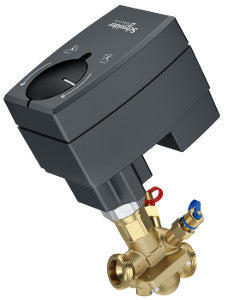

Schneider Electric VP228E-15L-L10-U301 SmartX Pressure Independent Valve Assembly 1/2 in 2-way 1.0 GPM

Product Description

The Schneider Electric VP228E-15L-L10-U301 is a pressure independent valve assembly designed for precise control in HVAC applications. This two-way valve is ideal for managing liquid flow with its electric actuator. It is suitable for use in a range of environments, ensuring reliable performance and efficiency.

• Body Size: 1/2 inch
• Flow Rate: 1.0 GPM
• Control Signal Range: 0 to 10 VDC, 4 to 20 mAdc

Product Highlights

This assembly includes features like a spring return actuator for smooth operation and compliance with strict control requirements.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Country of Origin: Slovenia

Technical Specifications

• Actuator Type: Electric
• Close-Off Pressure: 232 PSI
• Protection Rating: IP54
• Material: CW602N Brass
• Operating Fluid Temperature: -10 to 120 °C
• Ambient Air Temperature for Operation: 0 to 55 °C
• Power Input Voltage: 24 VAC
• Force: 300 N
• Electrical Insulation Class: Class III
