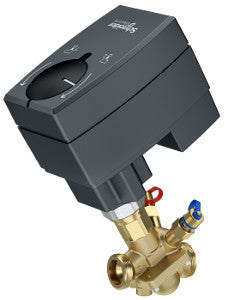

Schneider Electric VP228E-15L-L10-U201 SmartX Pressure Independent Valve Assembly

Product Description

Schneider Electric VP228E-15L-L10-U201 is a smart pressure independent valve assembly that features a half-inch size and two-way configuration. This product is designed to manage flow rates efficiently within pressure independent control valves. It is equipped with a spring return actuator, making it suitable for various applications in HVAC systems.

• Body Size: 1/2 inches
• Flow Rate: 1.0 GPM
• Protection Rating: IP54

Product Highlights

This valve assembly provides reliable flow management in heating and cooling systems. Its electric actuator ensures smooth operation. The valve is designed for efficient control with a proportional signal.

Product Information

Standard Information

• Brand: Schneider Electric
• Country Origin: Slovenia

Technical Specifications

• Actuator Type: Electric
• Power Input Voltage: 24 VAC
• Close-Off Pressure: 232 PSI
• Torque: 68 lbf
• Flow Pattern: 2-Way
• Control Signal Range: 0 to 10 VDC, 4 to 20 mAdc
• Mechanical Movement: Linear
• Ambient Air Temperature: 0 to 55 °C
• Operating Fluid Temperature: -10 to 120 °C
