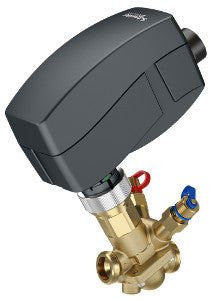

Schneider Electric VP228E-15L-L10-F101 SmartX Pressure Independent Valve Assembly 1/2 in 2-way 1.0 GPM

Product Description

Schneider Electric VP228E-15L-L10-F101 is a smart pressure independent valve assembly designed for efficient fluid control in various applications. This valve has a half-inch connection and operates with a maximum flow rate of one gallon per minute. The two-way configuration allows for effective fluid management. It is suitable for multiple systems including dampers and pressure independent control valves.

• Body Size: 1/2 inches
• Flow Rate: 1.0 GPM
• Control Signal: Floating

Product Highlights

This product is made for easy installation and optimal performance in HVAC systems. Its electric actuator ensures responsive control while the IP42 protection rating makes it suitable for various environments.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Country of Origin: Slovenia

Technical Specifications

• Actuator Type: Electric
• Close-Off Pressure: 232 PSI
• Power Input Voltage: 24 VAC
• Protection Rating: IP42
• Ambient Air Temperature for Operation: 0-55 °C
• Ambient Air Temperature for Storage: -40-70 °C
• Body Material: CW602N Brass
• Loss of Power Position: Fail in place
