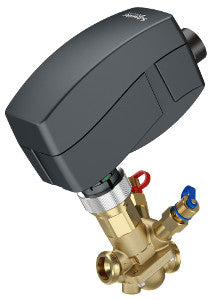

Schneider Electric VP228E-15L-L10-A101 SmartX Pressure Independent Valve Assembly 1/2 in 2-Way 1.0 GPM

Product Description

Schneider Electric VP228E-15L-L10-A101 is a pressure independent valve assembly designed for reliable flow control. This valve assembly features a half-inch body size and is a two-way configuration, ideal for various HVAC applications.

• Pressure-independent design ensures consistent flow regardless of pressure fluctuations.
• Electric actuator with a two-position control signal provides simple on/off operation.
• Made with durable CW602N brass for long-lasting performance.

Product Highlights

This assembly is suitable for controlling fluid flow in heating and cooling systems. It can be used in dampers and pressure independent control valves.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: Slovenia

Technical Specifications

• Body Size: 1/2 inch
• Flow Rate: 1.0 GPM
• Close-Off Pressure: 232 PSI
• Power Input Voltage: 24 VAC
• Protection Rating: IP42
• Operating Temperature: -10 to 120 °C
• Relative Humidity: 0-95 % RH, non-condensing
• Force: 130 N (30 lbf)
