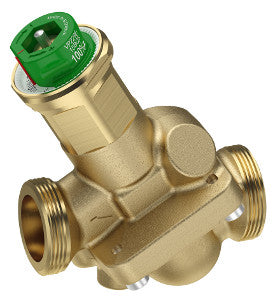

Schneider Electric VP228E-15BQSNT SpaceLogic VP228E PIBCV (PICV) 2-Way (Size)

Product Description

The Schneider Electric VP228E-15BQSNT is a pressure independent balancing control valve. This valve features a two-way design and is ideal for applications in HVAC systems. It is suitable for use with water and glycol-based fluids. The valve has a flow rate range from zero point zero nine to zero point four five cubic meters per hour.

• Pressure independent design for consistent flow
• Suitable for fan coils and terminal units
• External thread connection for easy installation

Product Highlights

This valve is designed to provide stable flow control while maintaining efficient system performance.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: VP228E-15BQSNT

Technical Specifications

• Body Size: 15 mm (1/2 in)
• Configuration: 2-Way
• Type: Pressure Independent
• Connection: G external thread
• Flow Rate Range: 0.09 to 0.45 m3/h (0.40 to 1.98 gpm)
• Control Media: Glycol 15 to 50% and Water
• Operating Fluid Temperature: -10 to 120 °C
• Seat Leakage: Class IV (0.01 %)
• Body Material: CW602N brass
• Device Application: Fan coil unit, radiation panel, terminal unit
• Product Line: SmartX PIBCV
• Product Series: VP228E
