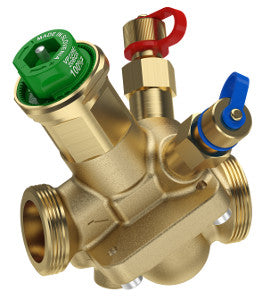

Schneider Electric VP228E-15BQS SpaceLogic PIBCV Pressure Independent Valve

Product Description

Schneider Electric VP228E-15BQS is a pressure independent valve designed for effective flow control. This two-way valve operates within a flow rate range of zero point zero nine to zero point four five cubic meters per hour. The connection type is G external thread, suitable for various applications in HVAC systems.

• Body size is fifteen millimeters.
• Control media includes glycol up to fifty percent and water.
• Not suitable for steam applications.

Product Highlights

This valve is part of the SmartX PIBCV product line, emphasizing ease of use and reliable performance in demanding environments.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: Slovenia

Technical Specifications

• MPN: VP228E-15BQS
• Body Material: CW602N brass
• Operating Fluid Temperature: -10 to 120 °C
• Seat Leakage: Class IV (0.01 %)
• Valve Connection Size: G 3/4A
• Device Application: fan coil unit, radiation panel, terminal unit
