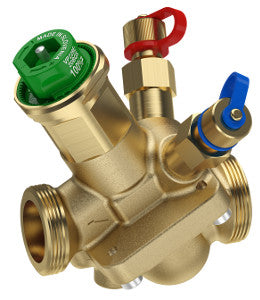

Schneider Electric VP228E-15BQL SpaceLogic PIBCV 2-Way G3/4 Ext. Thread Replacement MPN

Product Description

Schneider Electric VP228E-15BQL is a pressure independent balancing valve designed for low flow applications. This two-way valve supports efficient control for various heating and cooling systems. Suitable for fan coil units and terminal units, it is built for reliable performance in diverse conditions.

• Body size: fifteen millimeters (1/2 inch)
• Flow rate range: zero point zero six to zero point two eight cubic meters per hour (0.015 to 0.076 liters per second)
• Key media: glycol and water

Product Highlights

This valve is compatible with heating and cooling systems, providing effective control with low flow rates. The external thread connection ensures easy installation.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: Slovenia

Technical Specifications

• MPN: VP228E-15BQL
• Body Material: CW602N brass
• Connection Type: G external thread
• Operating Fluid Temperature: Negative ten to one hundred twenty degrees Celsius
• Seat Leakage: Class IV (0.01%)
• Product Range: SmartX PIBCV
• Product Line: VP228E
• Flow Rate: zero point zero six to zero point two eight cubic meters per hour
