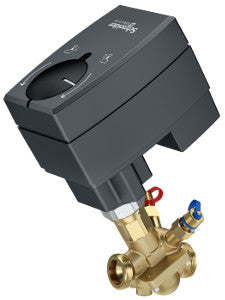

Schneider Electric VP228E-10L-L05-U301 SmartX Pressure Independent Valve Assembly 1/2 in 2-way 0.5 GPM

Product Description

Schneider Electric VP228E-10L-L05-U301 is a smart pressure independent valve assembly. This valve is designed for optimal flow control in various systems. The body size is one half inch and features a two-way configuration.

• Type: Pressure Independent
• Flow Rate: 0.5 GPM
• Actuator Type: Electric

Product Highlights

This valve assembly is suitable for multiple applications requiring precise control. It is ideal for HVAC systems aiming to maintain consistent pressure regardless of flow variations.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Country of Origin: Slovenia

Technical Specifications

• Close-Off Pressure: 232 PSI
• Control Signal Range: 0 to 10 VDC, 4 to 20 mAdc
• Power Input Voltage: 24 VAC
• Protection Rating: IP54
• Body Material: CW602N brass
• Operating Fluid Temperature: -10 to 120 °C
• Seat Leakage: Class IV (0.01 %)
• Force: 300 N
