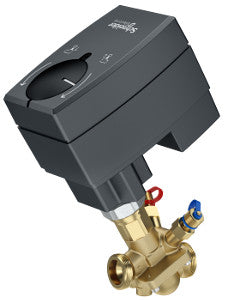

Schneider Electric VP228E-10L-L05-U201 SmartX Pressure Independent Valve Assembly 1/2 in 2-way

Product Description

The Schneider Electric VP228E-10L-L05-U201 is a smart pressure independent valve assembly designed for easy integration in HVAC systems. This 1/2 inch, two-way valve supports a flow rate of 0.5 gallons per minute and features PT ports for efficient water management. It is suited for applications requiring precise control of flow in heating and cooling systems.

• Body Size: 1/2 inch
• Type: Pressure Independent
• Actuator: MP300-SRU Spring Return

Product Highlights

This valve assembly operates with a control signal range of zero to ten VDC and four to twenty mAdc. It ensures reliable operation with a close-off pressure of two hundred thirty-two PSI, making it ideal for pressure independent control valves.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Country Origin: SI

Technical Specifications

• Configuration: 2-Way
• Flow Rate: 0.5 GPM
• Actuator Type: Electric
• Power Input Voltage: 24 VAC
• Protection Rating: IP54
• Material: CW602N brass
• Operating Fluid Temperature: -10 to 120 °C
