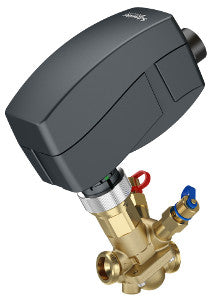

Schneider Electric VP228E-10L-L05-S101 SmartX Pressure Independent Valve Assembly 0.5 GPM

Product Description

Schneider Electric VP228E-10L-L05-S101 is a smart pressure independent valve assembly. This product is designed for efficient handling of water flow. It supports a flow rate of zero point five gallons per minute. This valve is suitable for a variety of HVAC applications.

• Body Size: 1/2 inch
• Configuration: 2-way
• Flow Rate: 0.5 GPM

Product Highlights

This valve assembly offers precise control with a proportional actuator. It is not intended for use with steam and has a LED status indicator for easy monitoring. The valve features a durable brass body and can be integrated with various control systems.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: SI

Technical Specifications

• Actuator Type: Electric
• Power Input Voltage: 24 VAC
• Close-Off Pressure: 232 PSI
• Protection Rating: IP42
• Flow Rate: 0.5 GPM
• Mechanical Movement: Linear
• Operating Fluid Temperature: -10 to 120 °C
• Body Material: CW602N brass
