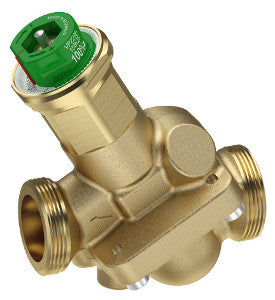

Schneider Electric VP228E-10BQLNT SpaceLogic PIBCV 2-Way DN10 G1/2 Replacement MPN

Product Description

The Schneider Electric VP228E-10BQLNT is a pressure independent balancing control valve designed for efficient flow management. This valve is suitable for various applications including fan coils, radiation panels, and terminal units. It has a body size of ten millimeters and features a two-way configuration.

• Flow rate range of zero point zero three to zero point one five cubic meters per hour.
• External thread connection type, suitable for G connections.
• Constructed with CW602N brass for durability and optimal performance.

Product Highlights

This product is optimized for low flow applications and does not have PT plugs.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Schneider Electric

Technical Specifications

• Body Size: 10 mm (3/8 in)
• Connection Size: G 1/2A
• Operating Fluid Temperature: -10 to 120 °C
• Control Media: Glycol 15 to 50% and Water
• Seat Material: Port A: brass
• Seat Leakage: Class IV (0.01 %)
• Flow Rate Range: 0.03 to 0.15 m³/h (0.13 to 0.66 gpm)
• Product Series: VP228E
