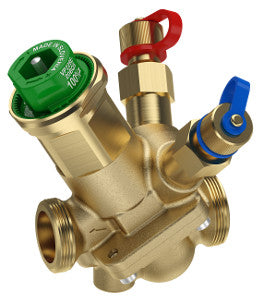

Schneider Electric VP228E-10BQL SpaceLogic PIBCV 2-Way Valve

Product Description

The Schneider Electric VP228E-10BQL is a pressure independent balancing control valve designed for various water applications. The valve features a two-way configuration and is suitable for fan coil units, radiation panels, and terminal units. It accommodates low flow rates ranging from zero point zero three to zero point one five cubic meters per hour.

• Body Size: ten millimeters (three eighths of an inch)
• Flow media: glycol and water
• Pressure rating: PN16

Product Highlights

This valve ensures precise flow control and energy efficiency, making it ideal for HVAC systems.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: Slovenia

Technical Specifications

• MPN: VP228E-10BQL
• Body Material: CW602N brass
• Operating Fluid Temperature: negative ten to one hundred twenty degrees Celsius
• Seat Leakage: Port A Class IV
• Connection Type: G external thread
• Flow Rate Range: zero point zero three to zero point one five cubic meters per hour
• Product Line: SmartX PIBCV
