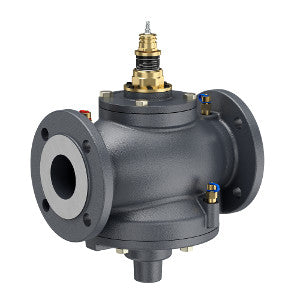

Schneider Electric VP222F-200CQH SpaceLogic PIBCV High Flow Valve

Product Description

Schneider Electric VP222F-200CQH is a pressure independent balancing and control valve suited for various fluid control applications. This 2-way valve is designed with a body size of 200 millimeters and a flanged connection type, making it suitable for high flow rates between one hundred to two hundred seventy cubic meters per hour.

• High flow rate capability
• Pressure independent operation
• Compatible with glycol and water as control media

Product Highlights

The VP222F series is part of the SmartX PIBCV range. It is effective for achieving precise flow control while providing important energy savings within HVAC and industrial applications.

Product Information

Standard Information

• Brand: Schneider Electric
• Product Line: SmartX PIBCV

Technical Specifications

• Body Size: 200 mm
• Flow Rate Range: 100 to 270 m³/h
• Connection Type: Flanged
• Material Trim: Brass
• Control Media: Glycol 15 to 50% and Water
• Product Alert: No PT Port; Not for use with steam.
• Country of Origin: Slovenia
• Weight: 219 kg
