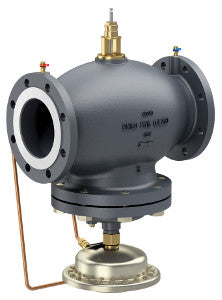

Schneider Electric VP221A-150CQS SmartX Pressure Independent Valve 6 in Replacement MPN

Product Description

Schneider Electric VP221A-150CQS is a pressure independent valve designed for various applications. This valve features a six-inch size and a two-way configuration suitable for controlling water flow. The VP221A-150CQS is ideal for air handling units, fan coil units, radiation panels, and terminal units.

• Flow rate range from 256 to 640 gallons per minute
• Constructed with a brass trim and grey cast iron body
• Not suitable for steam applications

Product Highlights

This valve provides consistent performance while maintaining pressure independence, making it an essential component for HVAC applications.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: Slovenia

Technical Specifications

• Body Size: 150 mm (6 in)
• Flow Rate Range: 256 to 640 gpm
• Material Trim: Brass
• Body Material: Grey cast iron GG-25
• Control Media: Glycol 15 to 50% and Water
• Operating Fluid Temperature: -10 to 120 °C
• Seat Leakage: Port A: 0.01% of Qnom
• Seat Material: Stainless steel AISI 420
