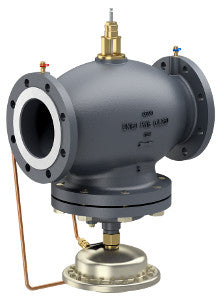

Schneider Electric VP221A-150CQH SmartX Pressure Independent Valve 6 in

Product Description

The Schneider Electric VP221A-150CQH is a pressure independent valve designed for optimal control in various fluid handling systems. With a body size of six inches, this two-way valve is flanged for easy installation. It operates efficiently with flow rates ranging from three hundred thirty-two to eight hundred thirty gallons per minute, making it suitable for diverse applications including air handling units and fan coil units.

• Made from durable grey cast iron with brass trim.
• Compatible with glycol and water control media.
• Designed for environments with operating fluid temperatures between negative ten and one hundred twenty degrees Celsius.

Product Highlights

This valve is suitable for applications across North America, ensuring reliable performance in your HVAC systems.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: VP221A-150CQH

Technical Specifications

• Body Size: 150 mm (6 in)
• Connection Type: Flanged
• Flow Rate Range: 332 to 830 GPM
• Control Media: Glycol 15 to 50% and Water
• Material Trim: Brass
• Operating Fluid Temperature: -10 to 120 °C
• Seat Material: Stainless Steel AISI 420
• Seat Leakage: Port A: 0.01% of Qnom
