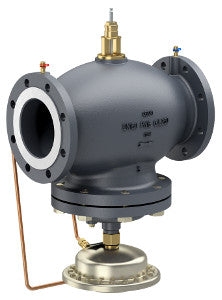

Schneider Electric VP221A-125CQH SmartX Pressure Independent Valve 5 in

Product Description

Schneider Electric offers the VP221A-125CQH, a pressure independent valve designed for efficient control in various applications. This valve features a body size of five inches and operates as a two-way flanged unit. It accommodates flow rates from one hundred ninety-four to four hundred eighty-five gallons per minute, making it suitable for diverse operational needs.

• Body size: 125 mm (5 in)
• Flow rate range: 194 to 485 gpm
• Material trim: Brass

Product Highlights

The valve is ideal for air handling units, fan coil units, and radiation panels. The product is not suitable for steam applications, ensuring safe usage in compatible environments.

Product Information

Standard Information

• Product Line: Schneider Electric
• Product Range: SmartX PIBCV

Technical Specifications

• Body Material: Grey cast iron GG-25
• Control Media: Glycol 15 to 50% and Water
• Seating Seal Material: Stainless steel AISI 420
• Operating Fluid Temperature: -10 to 120 degrees Celsius
• Seat Leakage: Port A: 0.01% of Qnom
• Country of Origin: Slovenia
• Weight: 85.3 kg
• Dimensions: 40 cm x 79 cm x 40 cm
