Schneider Electric VP220A-80S-100-U334 Spacelogic PIBCV Assembly 24V 3 in Replacement MPN

Product Description

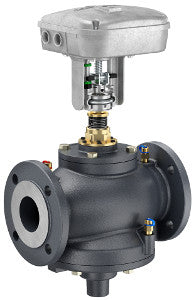

The Schneider Electric VP220A-80S-100-U334 is a pressure independent valve assembly designed for efficient fluid control. It features a three-inch body size with a two-way configuration. The assembly incorporates a proportional spring return actuator, suitable for applications in air handling units, fan coil units, and terminal units.

• Flow Rate: 100 gallons per minute
• Power Input Voltage: 24 VAC or 24 VDC
• Protection Rating: IP65

Product Highlights

This product provides reliable control in various HVAC applications. The actuator type is electric with a proportional control signal for precise operation.

Product Information

Standard Information

• Type: Valve-actuator assembly
• Targeted Region: North America

Technical Specifications

• Body Size: 3 inches
• Configuration: 2-Way
• Flow Rate: 100 gpm
• Close-Off Pressure: 232 PSI
• Actuator Type: Electric
• Control Signal: Proportional, Floating
• Power Consumption: 30 VA AC
• Operating Fluid Temperature: -10 to 120 °C
• Force: 500 N
• Ambient Air Temperature for Operation: -10 to 50 °C
• Relative Humidity: 0-90 % RH, non-condensing
• Spring Return Type: Normally closed
