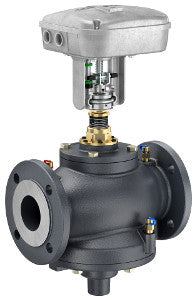

Schneider Electric VP220A-80S-100-U331 SmartX Pressure Independent Valve Assembly 3 in 2-way 100 GPM

Product Description

The Schneider Electric VP220A-80S-100-U331 is a pressure independent valve assembly designed for reliable performance in HVAC systems. Its two-way configuration allows for efficient flow control. This valve can handle a flow rate of up to one hundred gallons per minute, making it suitable for various applications including air handling units and fan coil units.

• Body Size: 3 inches
• Type: Electric actuator with spring return
• Protection Rating: IP54

Product Highlights

Ideal for efficient temperature control and reduced energy usage in commercial HVAC systems.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Schneider Electric

Technical Specifications

• Body Material: Grey cast iron GG-25
• Operating Fluid Temperature: -10 to 120 degrees Celsius
• Close-Off Pressure: 232 PSI
• Power Input Voltage: 24 VAC, 24 VDC
• Control Signal Range: 0 to 10 VDC, 4 to 20 mA DC
• Flow Rate: 100 GPM
• Actuator Type: MP500C-SRD
• Electrical Insulation Class: Class III
• Force: 500 N
• Relay Humidity: 0 to 90% RH, non-condensing
