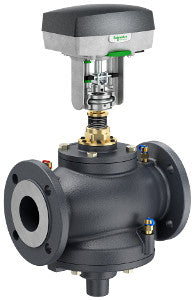

Schneider Electric VP220A-80S-100-U131 Valve Assembly 100 GPM MP500C

Product Description

The Schneider Electric VP220A-80S-100-U131 is a pressure independent valve assembly designed for effective flow control in various HVAC applications. This valve features a body size of three inches and a two-way configuration. It operates with a flow rate of 100 gallons per minute, making it suitable for air handling units, fan coil units, and other systems.

• Pressure independent operation
• Electric actuator for precise control
• Flanged connection for easy installation

Product Highlights

The VP220A-80S-100-U131 is engineered for reliability and efficiency. Its electric actuator ensures proportional control with a wide signal range, supporting various system requirements.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Schneider Electric

Technical Specifications

• Body Material: Grey cast iron GG-25
• Power Input Voltage: 24 VAC, 24 VDC
• Control Signal Range: 0 to 10 VDC, 4 to 20 mAdc
• Close-Off Pressure: 232 PSI
• Flow Rate: 100 GPM
• Actuator Type: Electric, Non-Spring Return
• Protection Rating: IP54
• Operating Fluid Temperature: -10 to 120 °C
