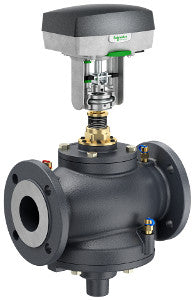

Schneider Electric VP220A-80S-090-U131 Pressure Independent Valve Assembly 3 in 90 GPM

Product Description

Schneider Electric presents the VP220A-80S-090-U131, a smart pressure independent valve assembly that is designed for efficient flow control in various HVAC applications. This valve features a three-inch size and a two-way configuration, and it supports a flow rate of up to ninety gallons per minute.

• Body size is three inches
• Can handle flow rates of ninety gallons per minute
• Includes a proportional non-spring return actuator

Product Highlights

This valve is suitable for air handling units, fan coil units, and terminal units, ensuring versatility in applications. It allows for proportional control signals ranging from zero to ten VDC or four to twenty mA DC. The actuator operates using an electric connection of twenty-four V AC or DC.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Schneider Electric

Technical Specifications

• Body Material: Grey cast iron GG-25
• Close-Off Pressure: 232 PSI
• Protection Rating: IP54
• Force: 500 N
• Operating Fluid Temperature: -10 to 120 °C
• Relative Humidity: 0 to 90 % RH, non-condensing
• Motor Type: Brushless DC motor
• Power Supply Voltage: 24 VAC/DC
