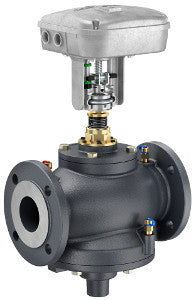

Schneider Electric VP220A-80H-176-U334 Spacelogic PIBCV Assembly 3 in 2-way Replacement MPN

Product Description

Schneider Electric VP220A-80H-176-U334 is a pressure independent valve actuator assembly designed for efficient control of fluid flow. This product features a three-inch body size and a two-way configuration, making it suitable for various applications. The valve operates at a flow rate of one hundred seventy-six gallons per minute and has a close-off pressure of two hundred thirty-two psi, helping to ensure precise fluid management.

• Body Size: 3 inches
• Flow Rate: 176 GPM
• Protection Rating: IP65

Product Highlights

This product is ideal for air handling units, fan coil units, and terminal units. It includes a spring return actuator that operates in a normally closed position. The proportional control signal enables seamless integration into existing systems.

Product Information

Standard Information

• Brand: Schneider Electric
• Type: Valve Actuator Assembly

Technical Specifications

• Actuator Type: Electric
• Power Input Voltage: 24 VAC, 24 VDC
• Control Signal Range: 0 to 10 VDC, 4 to 20 mAdc
• Force: 500 N
• Loss of Power Type: Spring Return
• Seat Material: Stainless Steel AISI 303
• Operating Fluid Temperature: -10 to 120 °C
• Relative Humidity: 0-90% RH, non-condensing
• Motor Type: Brushless DC Motor
• Control Type: Automatic Reset
• Duty Cycle: Continuous
