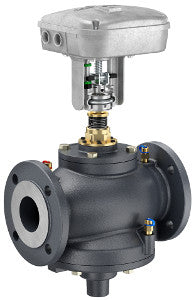

Schneider Electric VP220A-80H-176-U331 SmartX Pressure Independent Valve Assembly 3 in 2-Way 176 GPM

Product Description

The Schneider Electric VP220A-80H-176-U331 is a smart pressure independent valve assembly designed for efficiency in HVAC systems. This valve features a three-inch body size and a two-way configuration, allowing for a flow rate of one hundred seventy-six gallons per minute. The assembly includes an MP500C-SRD proportional spring return actuator, which responds to a range of control signals for precise operation. It is suitable for applications involving air handling units, fan coils, and terminal units.

• Body Size: Three inches
• Flow Rate: One hundred seventy-six gallons per minute
• Actuator Type: Electric with spring return

Product Highlights

This valve assembly operates under a close-off pressure of two hundred thirty-two PSI. It features a flanged connection for easy installation and is designed to operate under temperatures from negative ten to one hundred twenty degrees Celsius. The actuator is powered by twenty-four AC or DC volts.

Product Information

Standard Information

• Brand: Schneider Electric
• Type: Valve-Actuator Assembly

Technical Specifications

• Actuator Type: Electric, Proportional
• Protection Rating: IP54
• Operating Fluid Temperature: Negative ten to one hundred twenty degrees Celsius
• Control Signal Range: Zero to ten VDC, two to ten VDC, four to twenty mAdc
• Force: Five hundred N
• Body Material: Grey cast iron GG-25
• Relative Humidity: Zero to ninety percent RH, non-condensing
