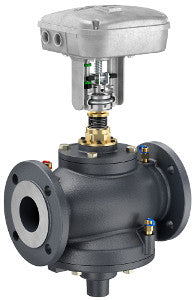

Schneider Electric VP220A-80H-176-U234 Spacelogic PIBCV Assembly 3 in 2-way 176 GPM

Product Description

The Schneider Electric VP220A-80H-176-U234 is a reliable PIBCV assembly designed for effective control of fluid flow. This valve features a three-inch body size and operates as a two-way, pressure-independent control valve. It supports a flow rate of up to 176 gallons per minute, making it suitable for various applications such as air handling units and fan coil units.

• Body Size: 3 inches
• Flow Rate: 176 GPM
• Actuator Type: Electric

Product Highlights

This valve assembly incorporates advanced features like an IP65 protection rating and a proportional control signal. It is engineered for durability and efficiency, providing a precise control mechanism in HVAC systems.

Product Information

Standard Information

• Brand: Schneider Electric
• Actuator Type: Linear

Technical Specifications

• Configuration: 2-Way
• Close-Off Pressure: 232 PSI
• Power Input Voltage: 24 VAC, 24 VDC
• Control Signal Range: 0 to 10 VDC, 4 to 20 mA DC
• Loss of Power Position: Normally open
• Protection Rating: IP65
• Force: 500 N
• Ambient Air Temperature Range: -10 to 50 °C
