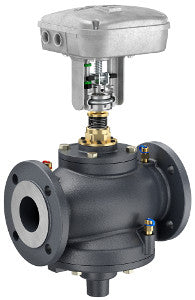

Schneider Electric VP220A-80H-176-U231 SmartX Pressure Independent Valve Assembly 3 in 2-way

Product Description

The Schneider Electric VP220A-80H-176-U231 is a pressure independent valve assembly designed for efficient control in HVAC applications. This valve features a three-inch body size and operates as a two-way valve. It can handle a flow rate of up to 176 gallons per minute. The actuator included is the MP500C-SRU, which uses a proportional spring return mechanism for reliable operation.

• Flow Rate: 176 gallons per minute
• Close-Off Pressure: 232 PSI
• Electric Actuator Type: MP500C-SRU

Product Highlights

This product is ideal for air handling units, fan coil units, and radiation panels. It includes features like a normally open position during power loss and a floating control signal. The actuator operates efficiently with a power input of 24 VAC or 24 VDC.

Product Information

Standard Information

• Body Material: Grey cast iron GG-25
• Operating Fluid Temperature: -10 to 120 °C

Technical Specifications

• Electrical Insulation Class: Class III
• Protection Rating: IP54
• Control Signal Range: 0 to 10 VDC, 2 to 10 VDC, 4 to 20 mAdc
• Force: 500 N
• Auxiliary Switch: Available as accessory
• Spring Return: Yes
• Torque Value: 113 lbf
• Relative Humidity: 0-90 % RH, non-condensing
